UCC2809PWTR-1G4

Category : Integrated Circuits (ICs) Power Management (PMIC) AC DC Converters, Offline Switches

Control Features : Frequency Control, Soft Start

Product Status : Discontinued at Digi-Key

Voltage - Start Up : 10 V

Mounting Type : Surface Mount

Frequency - Switching : 1MHz

Package : Tape & Reel (TR)

Series : -

Fault Protection : -

Output Isolation : Isolated

Supplier Device Package : 8-TSSOP

Mfr : Texas Instruments

Voltage - Breakdown : -

Voltage - Supply (Vcc/Vdd) : 8V ~ 19V

Package / Case : 8-TSSOP (0.173", 4.40mm Width)

Duty Cycle : 70%

Operating Temperature : -55°C ~ 150°C (TJ)

Internal Switch(s) : No

Base Product Number : UCC2809

Topology : Boost, Flyback, Forward

Description : IC OFFLINE SW MULT TOP 8TSSOP

Stock : In Stock

Shipping Method : LCL, AIR, Express

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Converter Offline Boost, Flyback, Forward Topology 1MHz 8-TSSOP

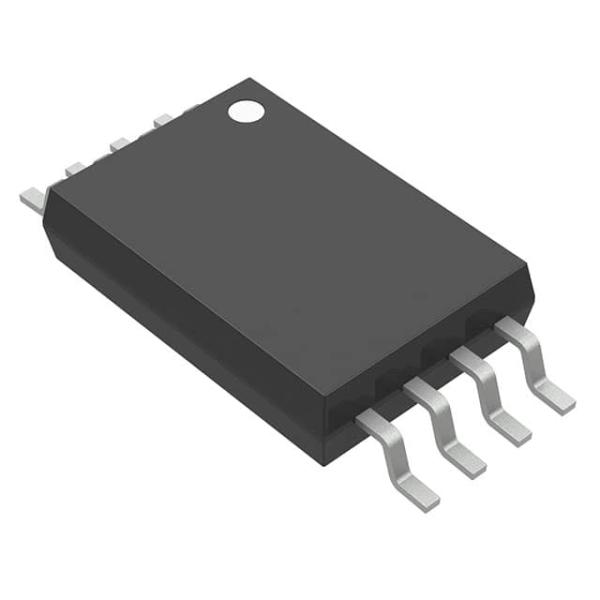

UCC2809PWTR-1G4 Images
